Laverdiere Project

Laverdiere Skarn - Porphyry Project

The Laverdiere Project was first explored by the Laverdiere Brothers in the early 1900’s. Their work consisted of bulk sampling campaigns across three historic adits (the North, French, & South Adits) driven into zones of high-grade Cu-skarn mineralization exposed along Hoboe Creek.  Laverdiere is characterized as a fine-to-coarse grained and locally massive Fe-Cu-Au-Mo-rich skarn hosted in dolomitic limestone and marble of the Devonian Boundary Ranges Metamorphic Suite. Along the western side of Hoboe Creek (Llewellyn Fault Zone), dolomitic limestone is overlain by thin-bedded calcareous siltstone, quartzite, and schist – all of which are locally folded, dip moderately to the west, and are intruded by an Early Cretaceous post-accretionary granodiorite intrusion of batholith size (Coast Plutonic Complex). The granodiorite is locally foliated, Cu-Mo-Au-bearing, and exhibits potassic alteration in the form of secondary K-feldspar and shreddy biotite after hornblende along the high-grade skarn contact.

Chalcopyrite is the dominant copper-bearing mineral observed and can be found as fine disseminations, concentrations of large blebs, and within veins and veinlets. Bornite is also locally observed. Molybdenum is locally associated with chalcopyrite as fine disseminations and blebs but is more commonly hosted in Mo-Py porphyry-style veins and veinlets.

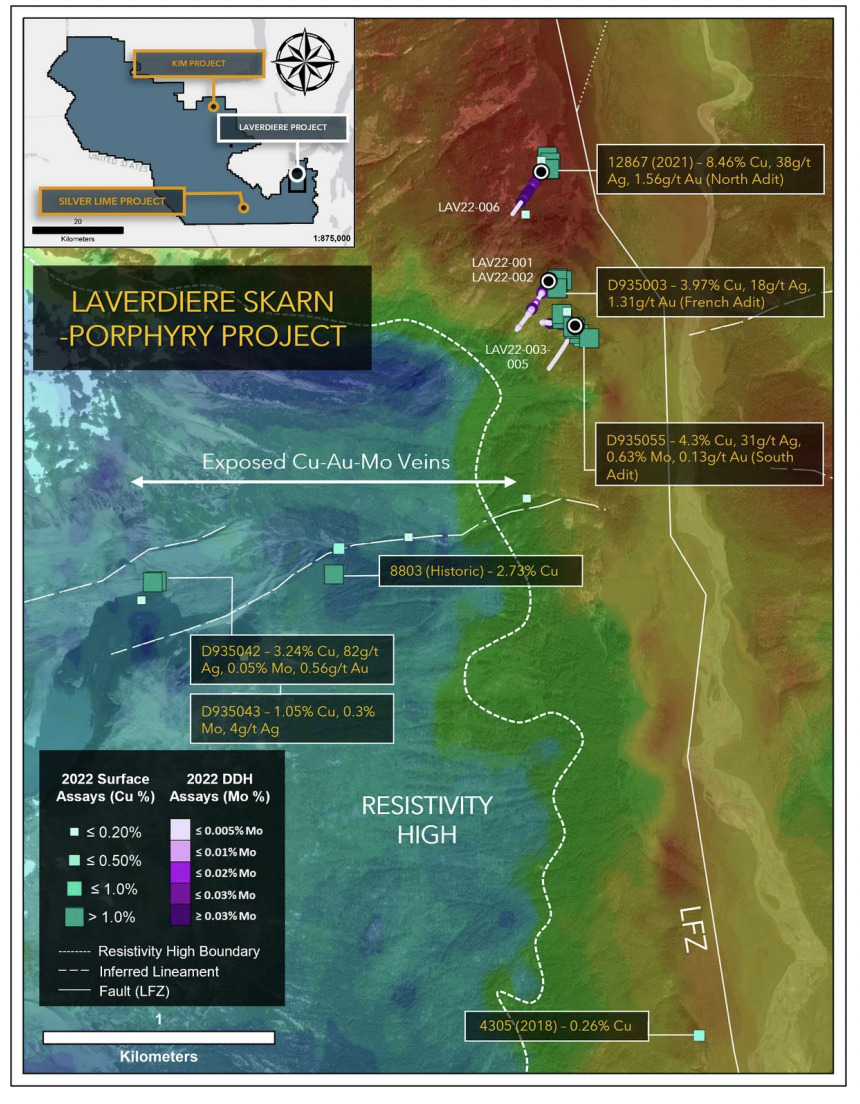

The highest-grade skarn occurrences observed at Laverdiere are hosted in dolomitic limestone, near the siltstone contact and along the margins of the granodiorite intrusion. Disseminated and quartz-vein/fracture-hosted chalcopyrite, molybdenite, magnetite, and malachite have been observed in granodiorite outcropping along the Llewellyn Fault Zone (LFZ/Hoboe Creek) for up to 3.9km south from the main skarn body. In 2022, Cu-Mo porphyry-style mineralization was extended to the west of the skarn showing by 2.2 kilometers. Cu-Mo porphyry-style veins graded up to 3.24% Cu, 0.30% Mo, 81g/t Ag, and 0.56g/t Au. These vein sets trend east-west and reside within a large resistive zone coinciding with the extents of the Laverdiere Porphyry. Similar veins have historically graded up to 2.73% Cu and can currently be traced along surface, following the orientation of a prominent fault. The current surficial extent of high-grade Fe-Cu-Au-Mo skarn mineralization measures 850 meters along a north-south directed trend, and boasts surficial grades of up to 8.46% Cu, 38g/t Ag, and 1.56g/t Au.

A total of 1,806 metres of diamond drilling was completed at the Laverdiere Skarn-Porphyry Project in 2022. First-pass diamond drilling intersected significant near surface, high-grade Fe-Cu-Au-Mo skarn mineralization associated with a potassically altered porphyry intrusion containing widespread porphyry Cu-Mo-Au mineralization and veining. LAV22-001 (French Adit) contained the most impressive skarn intercept, returning 48.54 meters of 0.90% Cu, 6g/t Ag, and 0.11g/t Ag from 31.46 meters, including 0.60 meters of 5% Cu, 33g/t Ag, and 0.36 g/t Au from 42.15 meters depth. LAV22-006 (North Adit), was designed to test the mineralization potential of the Laverdiere Porphyry and intercepted 107.38m of 0.11% Cu, 0.023% Mo, 0.9g/t Au, and 0.02g/t Au from 144.62 meters depth, including 41 meters of 0.27% Cu, 0.037% Mo, 2g/t Ag, and 0.05g/t Au, and 0.9m of 5.08% Cu, 23g/t Ag, 1.25g/t Au from 166.64 meters depth.

2022 Assay Highlights from the Laverdiere Skarn-Porphyry Project
DDH From (m) To (m) Interval (m) Au g/t Ag g/t Cu % Mo %
LAV22-001 0.95 268.00 267.05 0.04 1 0.17
LAV22-001 0.95 96.00 95.05 0.06 3 0.47
Including 31.46 80.00 48.54 0.11 6 0.90
42.15 42.75 0.60 0.36 33 5.01
and 78.00 78.70 0.70 0.25 13 2.24
LAV22-001 163.49 165.00 1.51 4.59 0.4 -
DDH From (m) To (m) Interval (m) Au g/t Ag g/t Cu % Mo %
LAV22-002 2.98 402.30 399.32 0.03 1 0.07 0.003
LAV22-002 15.00 238.00 223.00 0.05 2 0.11 0.006
LAV22-002 20.35 21.85 1.50 0.34 22 1.08 0.007
Including 20.35 20.92 0.57 0.20 53 2.74 0.000
LAV22-002 63.67 110.00 46.33 - 0.8 0.08 0.022
Including 64.74 65.82 1.08 - 0.3 - 0.100
82.53 83.32 0.79 0.02 0.3 - 0.316
and 84.85 86.68 1.83 - 0.5 - 0.103
LAV22-002 102.00 110.00 8.00 0.05 3 0.43 -
Including 102.00 106.00 4.00 0.09 5 0.80 -
and 104.00 106.00 2.00 0.30 19 3.01 -
LAV22-002 159.00 238.00 79.00 0.10 3 0.16 0.002
Including 159.00 177.24 18.24 0.16 3 0.19 0.001
159.00 159.70 0.70 1.15 11 0.68 -
173.00 227.00 54.00 0.12 3 0.19 0.002
173.00 175.00 2.00 1.66 11 0.75 0.020
207.23 231.65 24.42 0.16 4 0.32 0.005
207.23 222.00 14.77 0.25 6 0.41 0.003
207.23 209.00 1.77 2.05 24 1.13 0.001
221.00 222.00 1.00 0.21 5 1.07 -
224.00 227.00 3.00 0.04 2 0.40 0.011
224.00 225.50 1.50 0.09 6 0.92 0.029
and 225.50 229.17 3.67 0.04 2 0.39 0.020
LAV22-002 297.50 300.16 2.66 0.13 2 0.14 -
Including 297.50 298.10 0.60 0.55 5 0.26 -
DDH From (m) To (m) Interval (m) Au g/t Ag g/t Cu % Mo %
LAV22-003 4.51 35.00 30.49 0.03 2 0.12 0.009
LAV22-003 53.23 62.00 8.77 - 1 0.10 0.006
LAV22-003 104.70 105.35 0.65 0.09 7 0.90 0.005
DDH From (m) To (m) Interval (m) Au g/t Ag g/t Cu % Mo %
LAV22-004 169.73 172.00 2.27 0.23 4 0.24 0.001
LAV22-004 222.00 229.66 7.66 0.07 3 0.18 0.014
Including 227.20 229.66 2.46 0.21 7 0.37 0.022
DDH From (m) To (m) Interval (m) Au g/t Ag g/t Cu % Mo %
LAV22-005 0.00 175.00 175.00 0.02 0.5 0.06 0.008
LAV22-005 6.90 90.12 83.22 0.03 0.8 0.12 0.016
Including 6.90 15.36 8.46 0.09 3 0.63 0.001
and 6.90 8.29 1.39 0.25 10 1.98 0.002
LAV22-005 12.00 90.12 78.12 0.03 0.7 0.10 0.018
Including 12.00 15.36 3.36 0.15 5 0.98 0.001
14.00 15.36 1.36 0.16 5 1.24 0.001
59.04 90.12 31.08 - 0.3 0.03 0.042
50.34 57.00 6.66 0.09 2 0.34 0.001
69.00 75.20 6.20 - 0.3 - 0.105
70.00 72.00 2.00 - 0.5 - 0.216
and 86.00 88.00 2.00 - 0.5 - 0.255
DDH From (m) To (m) Interval (m) Au g/t Ag g/t Cu % Mo %
LAV22-006 3.35 352.00 348.65 - 0.5 0.06 0.010
LAV22-006 69.00 252.00 183.00 0.02 0.9 0.09 0.018
Including 69.00 73.00 4.00 - 0.9 0.05 0.105
144.62 252.00 107.38 0.02 0.9 0.11 0.023
152.00 193.00 41.00 0.05 2 0.27 0.037
166.64 193.00 26.36 0.06 2 0.34 0.049
166.64 167.54 0.90 1.25 23 5.08 -
170.02 193.00 22.98 - 2 0.16 0.056
170.02 170.92 0.90 0.06 7 1.87 -
177.00 193.00 16.00 - 2 0.09 0.072
177.00 188.00 11.00 - 2 0.13 0.092
177.00 178.00 1.00 - 0.1 - 0.301
184.00 188.00 4.00 0.02 3.2 0.21 0.146
186.61 188.00 1.39 - 5 0.33 0.211
191.80 193.00 1.20 - 0.2 - 0.108
246.50 252.00 5.50 - 0.3 - 0.110
and 251.04 252.00 0.96 - 0.8 0.03 0.425
